Monitor NEEWER F500 PRO 5.5 INCH CAMERA FIELD TOUCH SCREEN
Regular price
1,152.00 SR
Sale price
1,380.00 SR
The NEEWER F500 PRO 5.5" Camera Field Monitor is a professional on-camera monitor designed for filmmakers, photographers, and content creators who need accurate color reproduction, high brightness, and advanced monitoring tools during video production. Featuring a 5.5-inch Full HD IPS touchscreen, an impressive 2000-nit ultra-bright display, and 4K HDMI input/output, the F500 PRO delivers exceptional visibility even under direct sunlight.

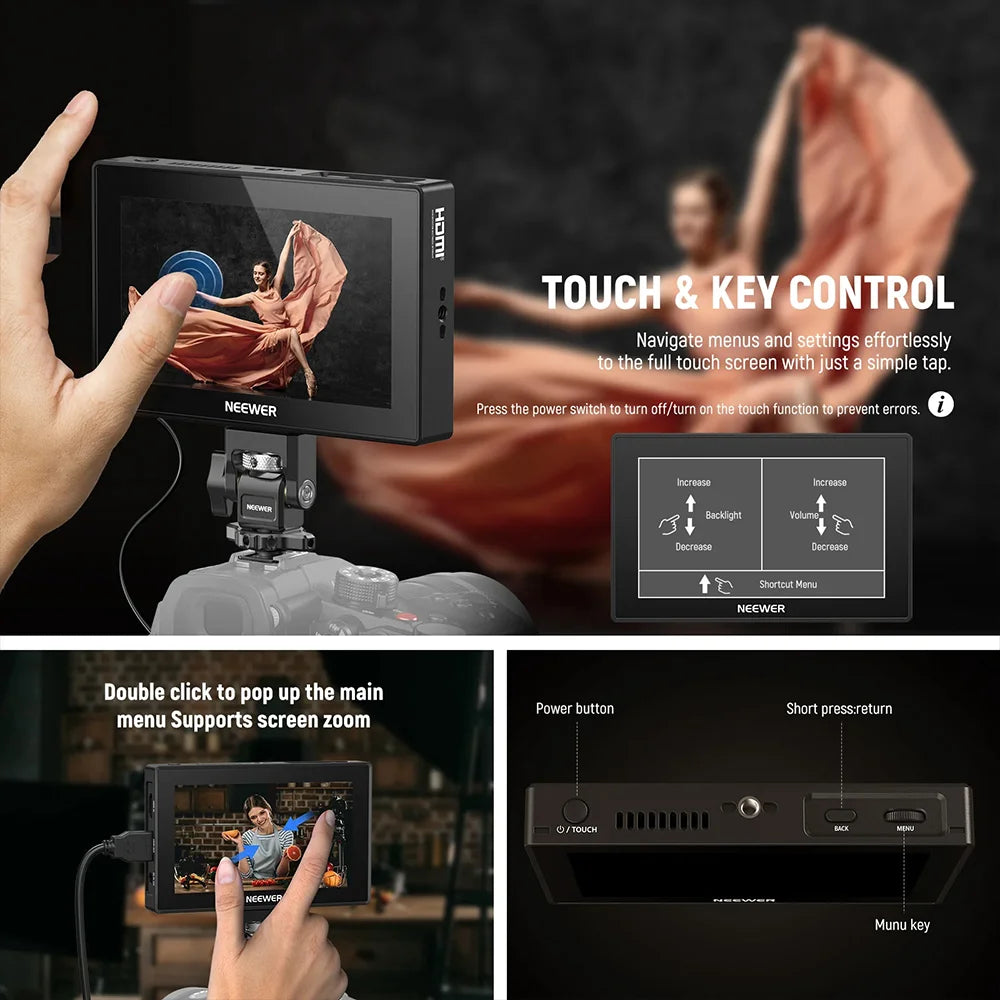

Its 1920×1080 Full HD resolution, 1000:1 contrast ratio, 160° wide viewing angle, and touchscreen interface provide sharp, vibrant, and accurate image monitoring from virtually any angle. Both manual and automatic brightness adjustment (1–100%) allow optimal viewing in any lighting condition, while touch controls can be enabled or disabled according to shooting preferences.
Supporting 4K HDMI loop-through, the monitor allows real-time image monitoring while simultaneously outputting the signal to external monitors, recorders, or projectors without delay. It supports a wide range of HDMI input formats, including 4K UHD 3840×2160 (30fps) and DCI 4K 4096×2160 (24fps), making it compatible with most DSLR, mirrorless cameras, and professional cinema cameras.
The F500 PRO includes professional color management tools with built-in HDR monitoring, 15 preloaded 3D LUTs, and support for uploading up to 60 custom LUTs via SD card. This enables accurate color calibration directly on set, minimizing post-production color correction and ensuring faithful color representation.

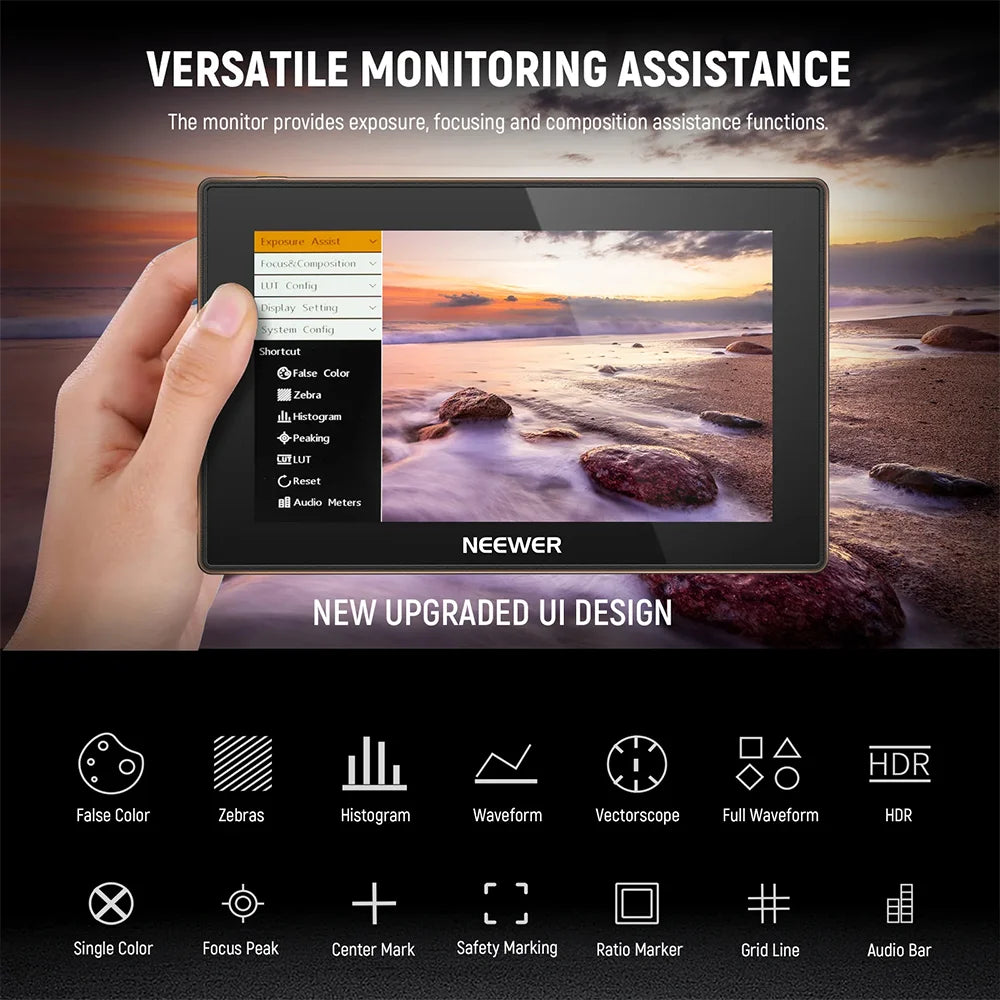

Designed for professional video production, the monitor features comprehensive exposure and focus assistance tools including Waveform, Vectorscope, Histogram, Focus Peaking, False Color, Zebra Patterns, Audio Meter, and Monochrome Mode, helping creators achieve precise focus, exposure, and composition.

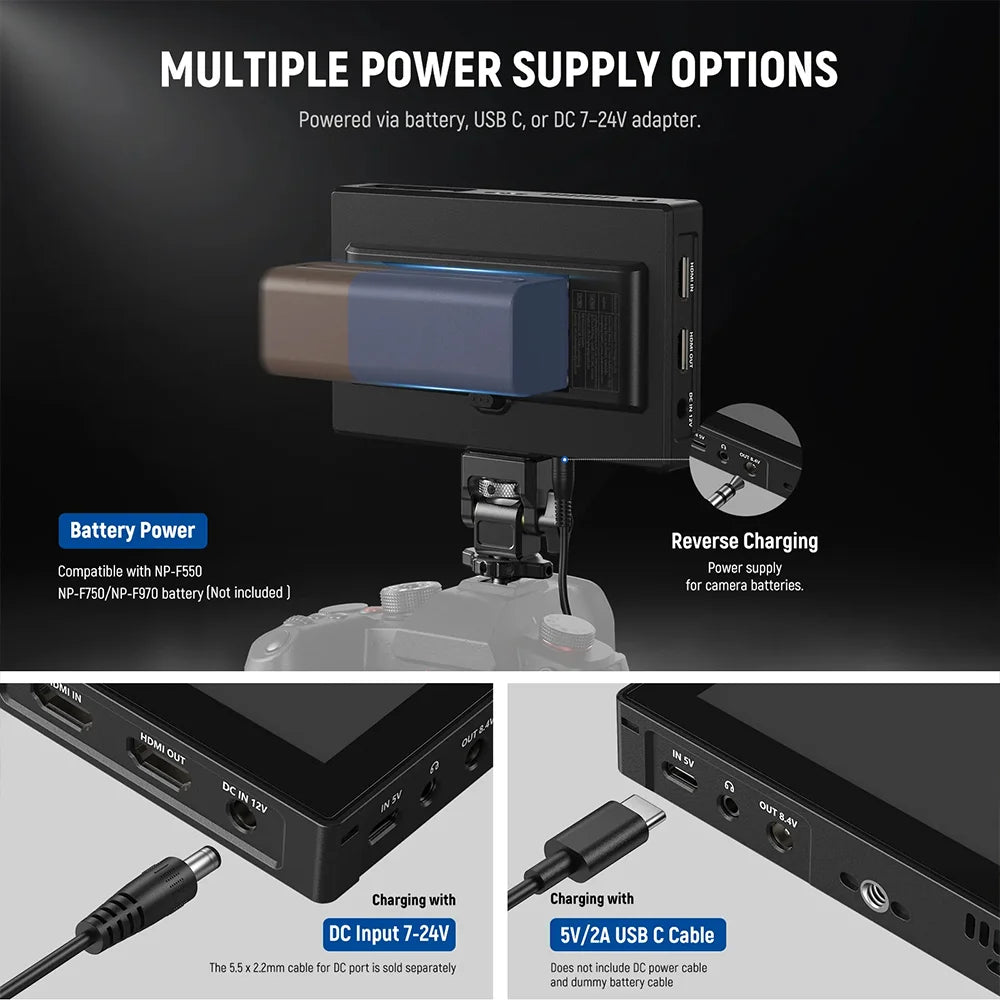

Power flexibility is another key advantage. The monitor supports Sony NP-F batteries, DC input, and USB-C power, and includes a high-capacity 5200mAh NP-F750 battery. It also functions as a dummy battery power output (8.4V/1.5A), allowing compatible cameras to be powered directly from the monitor during long recording sessions. An integrated cooling fan ensures reliable performance during extended use.
Specifications
Display
Brand: NEEWER
Model: F500 PRO
Screen Size: 5.5"
Panel Type: IPS Touchscreen
Resolution: 1920 × 1080 Full HD
Aspect Ratio: 16:9

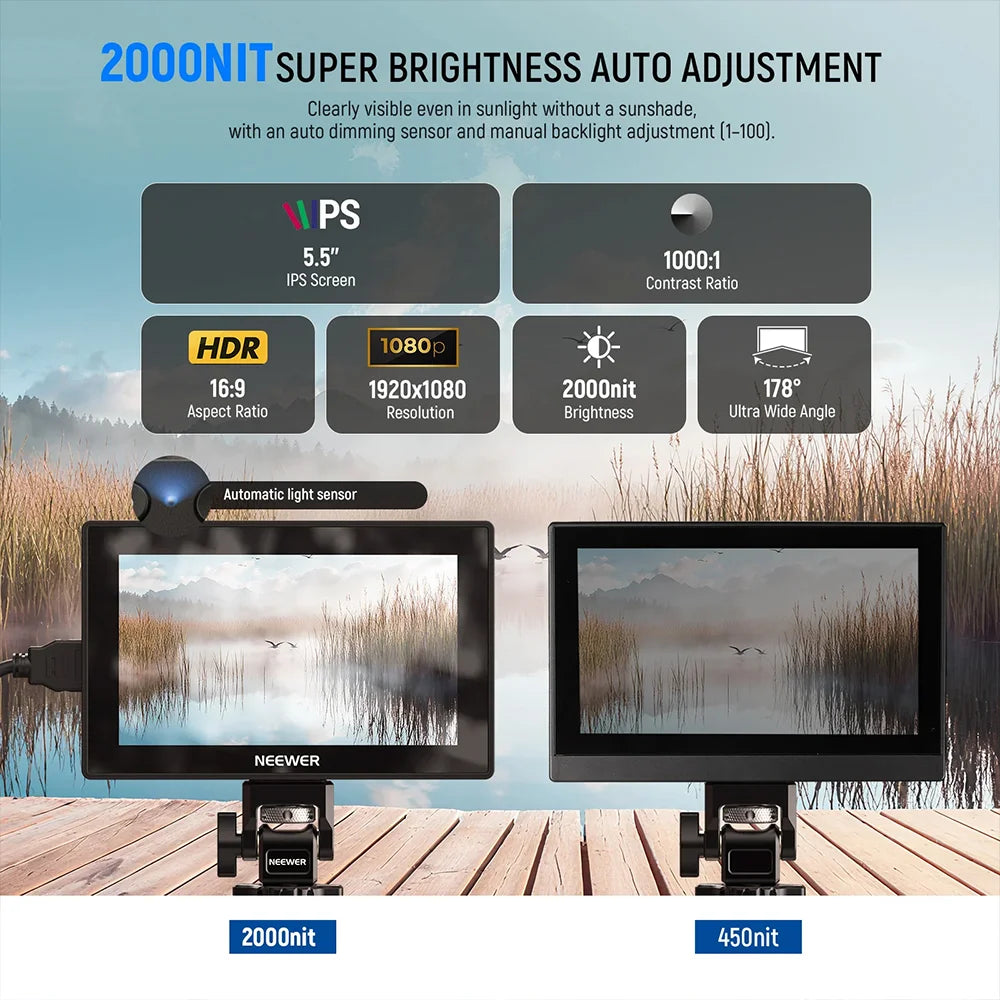

Brightness: 2000 nits
Contrast Ratio: 1000:1
Viewing Angle: 160°
Backlight Adjustment: Manual & Auto (1–100%)
Video Input / Output
HDMI Input
HDMI Loop Output
3.5mm Headphone Output
Supported HDMI Formats
480i / 480p
576i / 576p
720p
1080i
1080p
3840 × 2160 UHD (up to 30fps)
4096 × 2160 DCI 4K (up to 24fps)
Power
Sony NP-F550 / NP-F750 / NP-F970 Batteries
USB Type-C Power Input
DC 7–24V Input
Dummy Battery Output: DC 8.4V / 1.5A
Power Consumption: ≤22W
Operating Conditions
Operating Temperature: -20°C to 55°C
Storage Temperature: -30°C to 65°C
Dimensions
Size: 132 × 82 × 20mm
Mount: Cold Shoe
Professional Monitoring Features
2000-nit ultra-bright daylight display
Full HD IPS touchscreen
4K HDMI input & loop output
HDR monitoring
15 built-in 3D LUTs
Upload up to 60 custom LUTs
Waveform monitor
Waveform graph
Vectorscope
Luminance Histogram
Focus Peaking
Zebra Exposure
False Color
Audio Level Meter
Monochrome Mode
Firmware upgrade via SD Card
Key Features
5.5" Full HD IPS touchscreen
2000-nit daylight viewable display
1920×1080 resolution
160° ultra-wide viewing angle
Manual & automatic brightness adjustment
4K HDMI input and loop output
Real-time audio monitoring via 3.5mm headphone jack
HDR monitoring support
Built-in professional color calibration
15 preloaded LUTs
Upload up to 60 custom LUTs
Professional exposure and focus tools
Compatible with Sony NP-F batteries
USB-C and DC power support
Built-in cooling fan
Dummy battery power output for cameras
Compact and lightweight design
Compatible With
Compatible with:
DSLR Cameras
Mirrorless Cameras
Cinema Cameras
Video Camcorders
External Recorders
HDMI Monitors
Sony NP-F550 Batteries
Sony NP-F750 Batteries
Sony NP-F970 Batteries
Tripods
Camera Rigs
Gimbals
Video Production
Live Streaming
Filmmaking
Content Creation

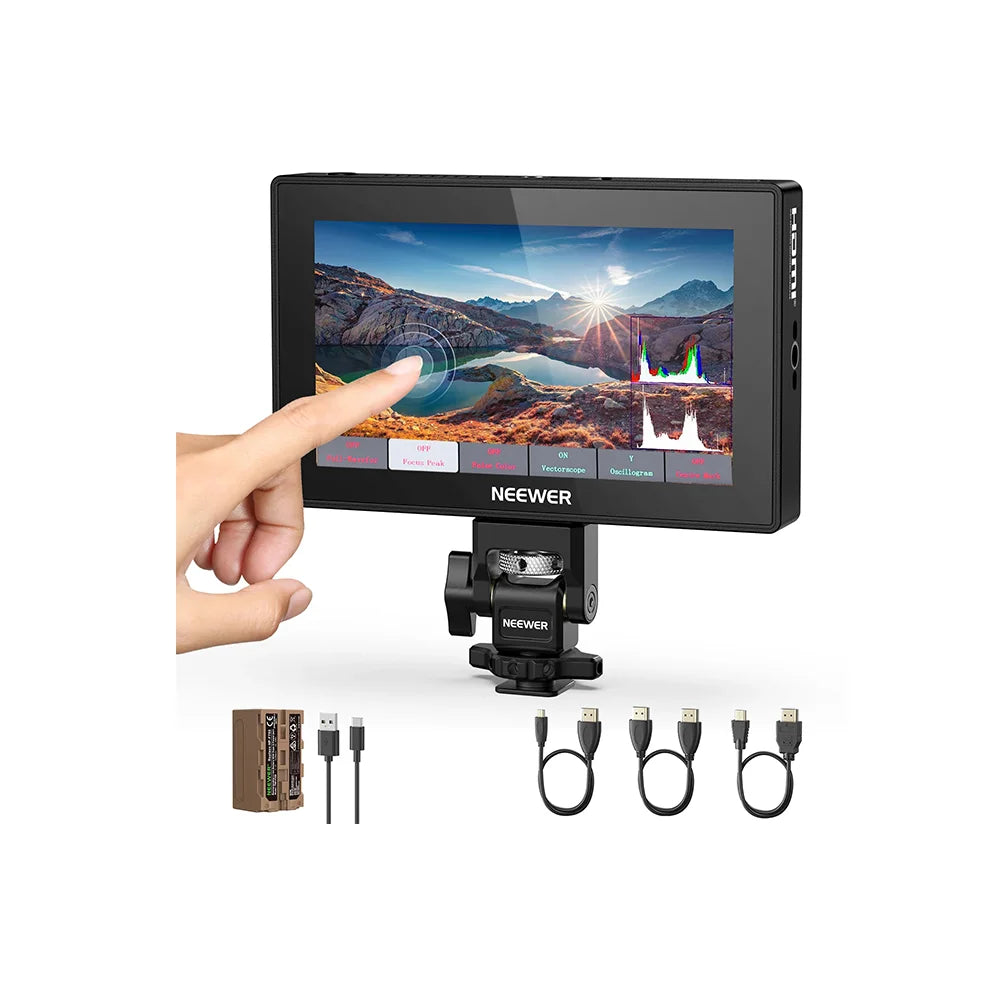

Package Includes
1 × NEEWER F500 PRO 5.5" Field Monitor
1 × Monitor Mount
1 × NP-F750 Battery (5200mAh)
1 × USB-A to USB-C Charging Cable
1 × HDMI to Micro HDMI Cable
1 × HDMI to Mini HDMI Cable
